Back to overview
Article 6 of 11

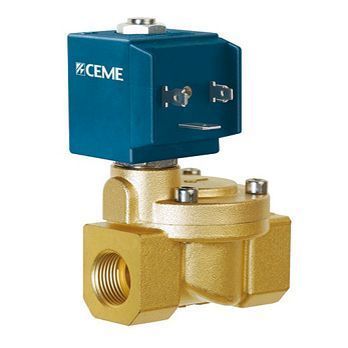

C.E.M.E. CEME solenoid valve 8616, 1 ", ø 25 mm, 0.3-10 bar 90°C, NBR, 24 V DC, with plug, water,air,light oil

Article no. C8616NN250SBC2
×
  • CEME solenoid valve 8616, 1 ", ø 25 mm, 0.3-10 bar
The following prices apply:
Quantity Price
from 16 piece 64,51 €/piece
from 32 piece 63,18 €/piece
from 64 piece 61,85 €/piece
from 128 piece 59,85 €/piece
from 264 piece 56,53 €/piece
Ready for shipping
Register
Specifications: Inlet G 1"
Exit G 1"
Operation pilot operated
Type 2/2 way NC
Sealing material NBR
Voltage 24 V DC
M.O.P.D. AC 10.00bar 145.04psi
M.O.P.D. DC 10.00 bar 145.04 psi
Minimum differential working pressure 0.3 bar 4.35 Psi
Ø opening 25.00 (mm) 0.98 (inch)
Flow Kv 9.60 (m³/h) 2536.05(Gal)
Media: water / air / light oil
