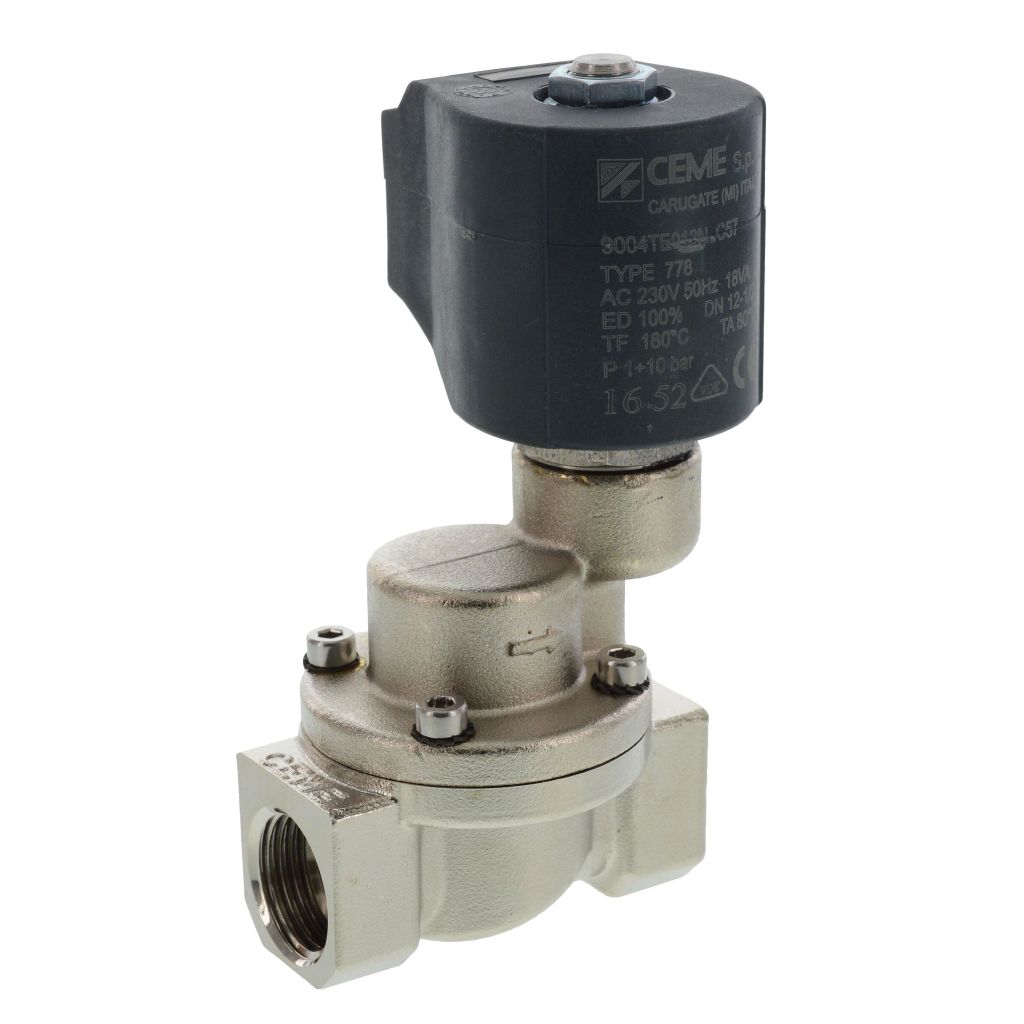

C.E.M.E. CEME solenoid valve 9004, 1/2 ", ø 12 mm, 1-10 bar 180 ° C, PTFE, 230 V / 50 Hz, with plug, for steam

Article no. C9004TE120NC57
×
  • CEME solenoid valve 9004, 1/2 ", ø 12 mm, 1-10 bar
  • CEME solenoid valve 9004, 1/2 ", ø 12 mm, 1-10 bar
The following prices apply:
Quantity Price
from 8 piece 84,88 €/piece
from 15 piece 83,13 €/piece
from 30 piece 80,50 €/piece
from 60 piece 78,75 €/piece
from 120 piece 76,13 €/piece
from 240 piece 74,38 €/piece
from 300 piece 71,75 €/piece
from 450 piece 70,00 €/piece
from 600 piece 65,63 €/piece
from 750 piece 63,00 €/piece
from 900 piece 61,25 €/piece
Ready for shipping
Register
Specifications
Inlet: G 1/2''
Output: G 1/2''
Operation: Pilot Operated
Type: 2/2 way NC
Sealing material: PTFE
Max. temperature: 180°C
Voltage: 230V / 50Hz
M.O.P.D. AC: 10.00 bar / 145.04 psi
M.O.P.D. DC: 1 bar / 14.50psi
Ø opening: 12 mm / 0.47 inch
Kv Flow Rate: 2.4 m³/h / 634.013 gal/h
Medium: steam
