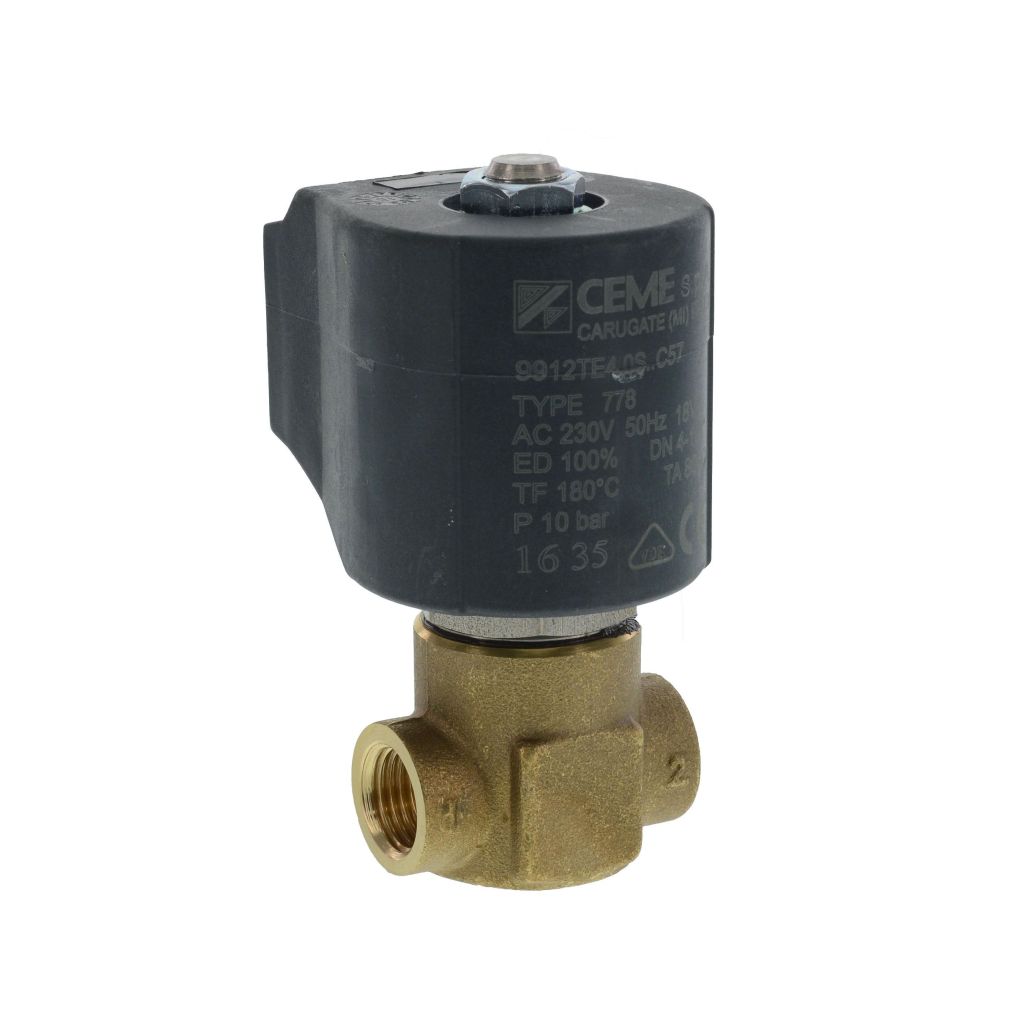

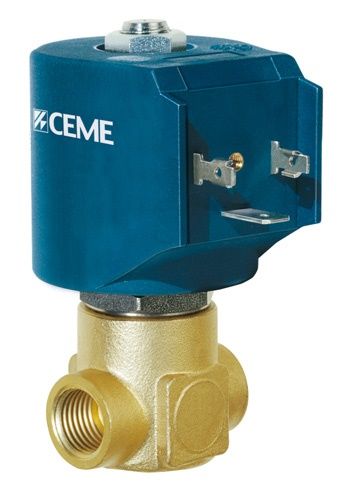

C.E.M.E. CEME solenoid valve 9912, 1/4 ", ø 4 mm, 8 bar 180°C, PTFE, 230 V / 50 Hz, with plug, for steam

Article no. C9912TE40SC57
×
  • CEME solenoid valve 9912, 1/4 ", ø 4 mm, 8 bar
  • CEME solenoid valve 9912, 1/4 ", ø 4 mm, 8 bar
  • CEME solenoid valve 9912, 1/4 ", ø 4 mm, 8 bar
The following prices apply:
Quantity Price
from 10 piece 42,04 €/piece
from 20 piece 39,83 €/piece
from 40 piece 37,61 €/piece
from 80 piece 35,40 €/piece
from 160 piece 33,19 €/piece
from 240 piece 31,86 €/piece
from 1000 piece 30,98 €/piece
Ready for shipping
Register
Specifications
  • Input G 1/4"
  • Output G 1/4"
  • Actuation direct action
  • Type 2/2 way NC
  • PTFE seal
  • max. Temperature: 180°C
  • Maximum pressure AC 8.00 Bar 116.03 Psi
  • Minimum pressure 1.00 bar 14.50 psi
  • Ø opening 4.0 (mm) 0.158 (inch)
  • Kv flow rate 0.470 (m³/h) 124.16 (gal/min)
  • Medium Steam
