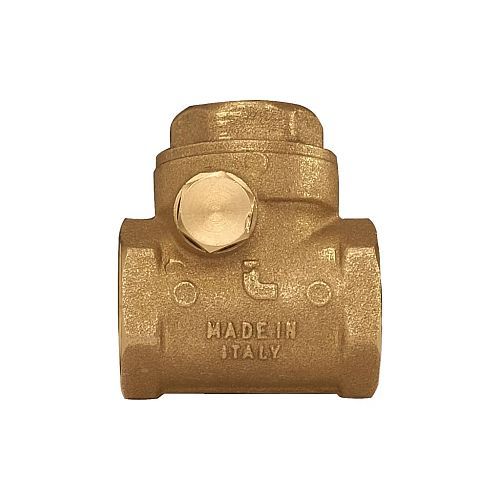

itap Non-return flap brass 1 1/2" internal thread PN 10, Tmax 90°C, brass, with NBR seal

Non-return flap 130G with NBR seal and G 1 1/2" female thread

Suitable for water supply, heating, air conditioning and compressed air systems. Valve body and flap made of brass NBR O-rings and seal

Minimum operating temperature: 0°C

Maximum operating temperature: 90°C

Max. permissible operating pressure: 10 bar / 145 psi

Connection type: 2 x internal thread Threaded connections ISO228 (corresponds to DIN EN ISO 228 and BS EN ISO 228) The non-return flap should only be installed in a horizontal or vertical position.
